   Product > Series of Defrost Thermostat > KSD-301V

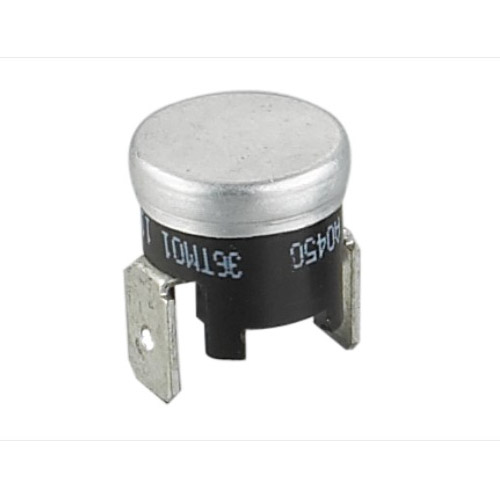

KSD301V
The scope and characteristics:
Series KSD30 1/2 inch (ф12.7mm) bimetal thermostat implemented by sensing the temperature change in the circuit is turned on or off. High precision, fast cutting, high reliability, and are widely used in water dispenser, coffee maker, microwave, air conditioning, refrigerators and other household appliances and similar electrical appliances use products overheating protection or temperature control.
The main technical parameters:
Action Form: SPST (S.P.S.T)
Reset the form: Manual
Electrical Ratings: AC250V 10A / AC125V 15A
Insulation resistance value: more than 100MΩ
Operating temperature range: 0 ° C ~ 160 ° C
Terminal size: 6.3 * 0.8mm, 5.8 * 0.6mm, 4.8 * 0.5mm
